1. How To Use This Guide

This User Guide aims to help you get familiarised with the commands used in the Command Line Interface (CLI) application. The following table indicates the symbols used to aid the understanding of the guide. The end of this User Guide also gives a summary of commands used in the application.

Symbol/Format	Meaning
	An informational source.
	A warning.
	A tip.
Bolded	A keyword.
Italicised	Technical word.
Hyperlinked	Leads to the appropriate section.
Code	Text that appears on the CLI / in code.

---

2. Introduction

CLIrcuit Assistant is a desktop app to implement and solve simple circuits and logic gate configurations, optimized for use via the CLI. The application is targeted at those who would simply like a resource-light and offline program to aid in analysing circuits.

At its current implementation, this application has no storage feature. More information on this can be found in the Developer Guide.

Note: This application has no storage feature.

---

3. Quick Start

The following section will explain the steps taken to get CLIrcuit Assistant running on your computer.

1. Ensure that you have Java 11 or above installed.
2. Download the latest version of Duke from the releases.
3. Double click the jar file to start the application.
   1. If the above step does not open the app, then open your terminal and make sure you are in the folder with the jar file.
   2. Type the following command:

       java -jar duke.jar


4. Once the app starts, type a command in the command line and press enter to execute it.
5. Use the command tutorial circuit or tutorial boolean to go through an interactive tutorial before using the application.
6. Alternatively, you can use the command summary to get a list of all commands used in the application.
7. Note that a logging file appLog.txt will be created in the same directory that duke.jar is run from. For further information regarding logging, you can refer to the Developer Guide.

---

4. Command Preface

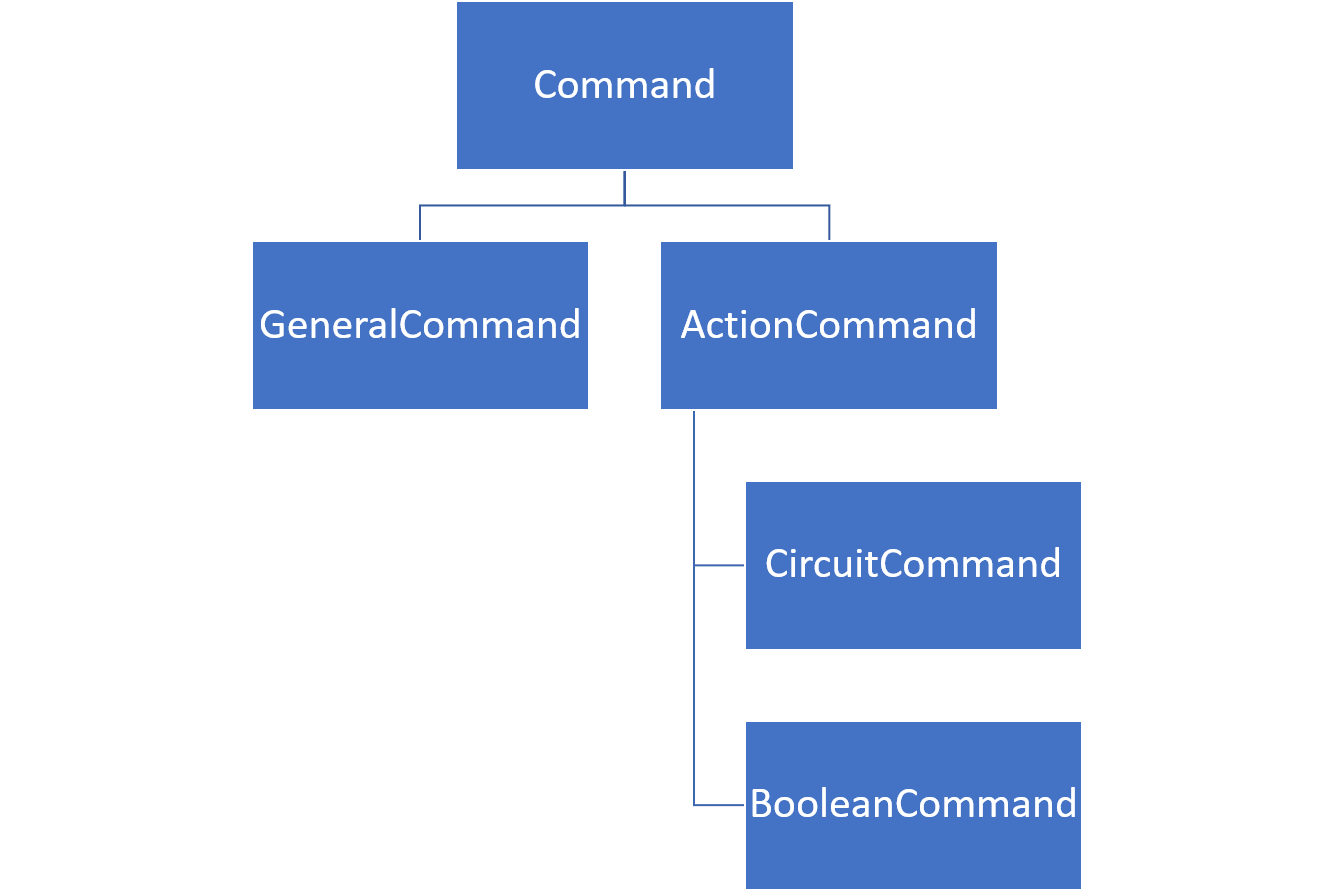

The diagram above shows the hierarchy of the types of commands in the application. If you are looking for the summary of commands used within the CLI app, it can be found at the end of this guide. In this User Guide, you can find the following sections listed below:

• General Commands
• Circuit Action Commands
• Boolean Action Commands

General commands are commands which are not specific to features available using the action commands.

Action commands are split into two categories - they may use the same syntax for some commands, but the application will continuously track the current template that is being worked on and automatically use the correct command to execute. Thus, if there is no current template, then the other commands used will not be available to run.

Note: The template command is essential.

The commands involved with both categories are:

• template
• set
• add
• calc

The format of commands below keep to the following.

Note: Words in UPPER_CASE are parameters.

Note: Given a command parsed to require n arguments, any argument after the nth argument will be ignored.

---

5. General Commands

This section details the generic commands that can be used. These commands assist you in finding out generic information regarding the application.

5.1 Summary of Commands

This command prints a summary of all commands in the application as shown in Command Summary.

Command Format
summary

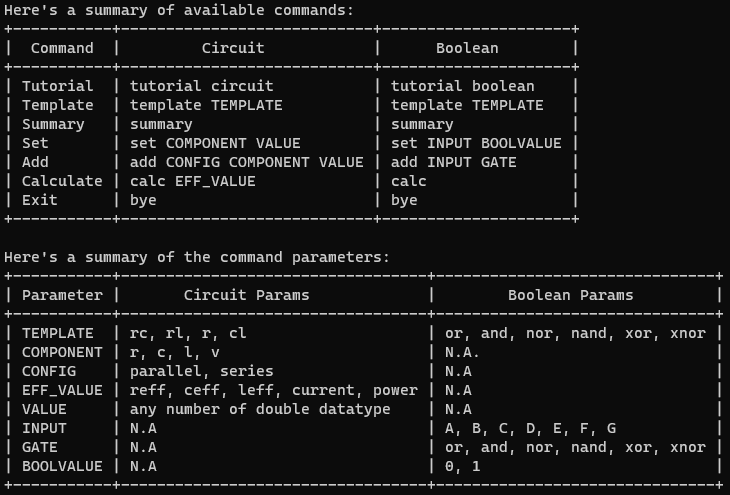

The image below shows the expected summary table shown with the command summary.

5.2 Interactive Tutorial

To aid the user, this command starts the interactive tutorial for either the Circuit Action Commands or Boolean Action Commands based on the parameter specified.

Command Format
tutorial TYPE

• TYPE can be either circuit or boolean.

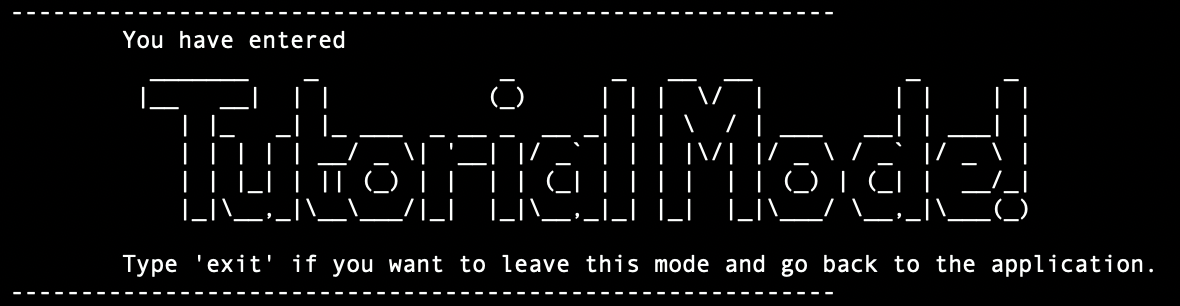

Once you have entered the interactive tutorial, you are to follow the instructions provided to them as follows:

The proceeding instructions will depend on whether you have chosen tutorial circuit or tutorial boolean.

When you have entered the tutorial, you will be required to type in the commands in the terminal for each step of the tutorial as per the instructions given to them.

You will be required to do this until you have reached the end of the tutorial.

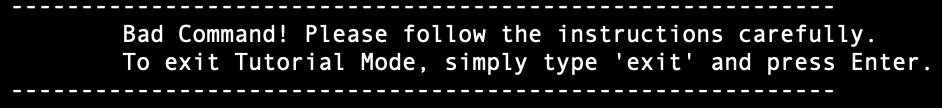

When you have typed in a command that is inconsistent with what is required as per the tutorial’s instruction for that particular step, an invalid command message will be returned until you type in the correct command in the terminal line as shown below.

You may also choose to exit the tutorial at that point of time instead by entering exit.

5.3 Exiting the Application

This command can be used to exit the application.

Command Format
bye

Warning: You cannot use this command to exit from the app when in interactive tutorial mode. For notes on how to exit tutorial mode, please refer to 5.2 Interactive Tutorial.

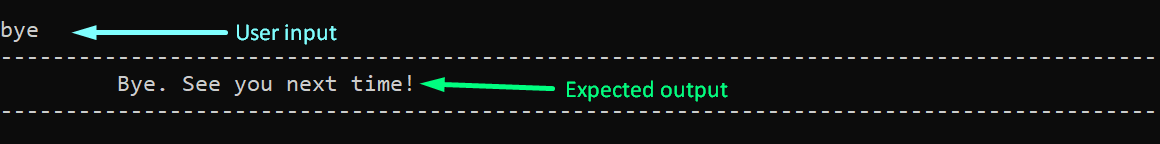

The following diagram shows the expected behaviour when using the bye command.

---

6. Circuit Action Commands

This section details how the commands are used with a circuit template. You can use this section to build simple template circuits which may have a voltage source with load components such as resistors, capacitors, or inductors.

It may be important to note that the circuit diagrams shown in the expected outputs are simplified circuits, even when adding components. For example, adding a resistor in parallel to a template that contains a resistor will change the effective resistance in the circuit, but it will not dynamically update the visualised diagram to show a second resistor.

Note: With the limited time and GUI constraints, there is no dynamic visualisation update for the circuits.

6.1 Creating a circuit template

This command creates a circuit template. This command must be used to be able to use the set, add, calc commands since those commands must be done on an existing template.

Command Format
template TEMPLATE

• The TEMPLATE can be chosen from the following 4:
  • r only consists of the resistor.
  • rc consists of the resistor and capacitor.
  • rl consists of the resistor and inductor.
  • lc consists of the inductor and capacitor.

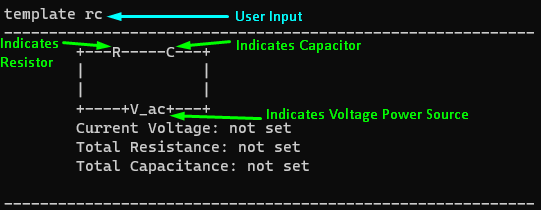

The diagram below shows an example when using the template rc command.

6.2 Setting a component value

This command sets the value of a component. The component must be part of the current circuit template. Units correspond to the component involved - resistors in ohms, capacitors in microfarads, and inductors in microhenries. The values would need to be set to perform calculations or analysis such as in the calc command.

Warning: You cannot set a component not present in the current working template.

Command Format
set COMPONENT VALUE

• The COMPONENT can be chosen from the following 4, but only if they are part of the template:
  • r represents a resistor
  • c represents a capacitor
  • l represents an inductor
  • v represents a voltage source
• The VALUE can be an integer of a float, of which the units depends on the component set.

Example of usage:

set r 500

Expected Outcome:

The resistor was set to 500.0 Ω
	+---R-----C---+
	|             |
	|             |
	+----+V_ac+---+
Current Voltage: 0.0 V
Total Resistance: 500.0 Ω
Total Capacitance: 0.0 µF

6.3 Adding a component

This command adds a component, in a specific configuration - either in parallel or in series - to the current circuit template. This allows you to quickly obtain calculations to your chosen configurations. Only load components can be added - you cannot add a voltage source. You should only add a component after it has already been set.

Tip: You can add components as long as there is already a value set using the set command.

Warning: You cannot add a component not present in the current working template.

Warning: You cannot add a new voltage source v to any template.

Command Format
add CONFIG COMPONENT VALUE

• The CONFIG can be chosen from the 2 - series and parallel.
• The COMPONENT and VALUE are as explained above under Set component value, except that COMPONENT cannot be the voltage source v.

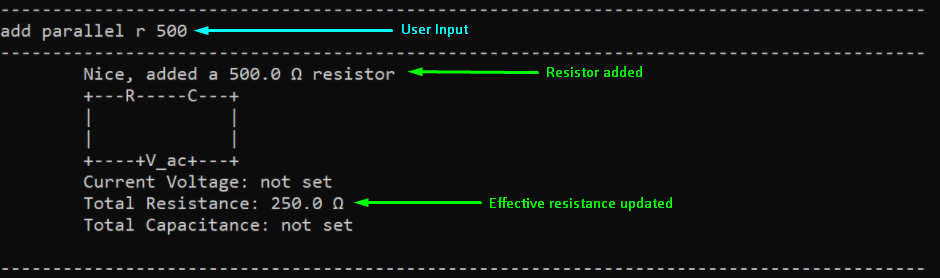

The image below shows an example of using the command add parallel r 500 on a template.

6.4 Calculating Effective Value

This command calculates the various effective values based on the template configuration. While calculating reff, ceff, or leff, the component must be part of the current circuit template. You can obtain the various values detailed below quickly after setting the necessary components.

Warning: You cannot calculate the value of a component not present in the current working template.

Note: If a component is not yet set, its effective value, as well as the current and power flowing through the power supply, will default to 0.

Command Format
calc EFF_VALUE

• The EFF_VALUE can be chosen from the following 5:
  • reff is the effective resistance
  • ceff is the effective capacitance
  • leff is the effective inductance
  • current is the current flowing through the power supply
  • power is the power supplied by the power supply

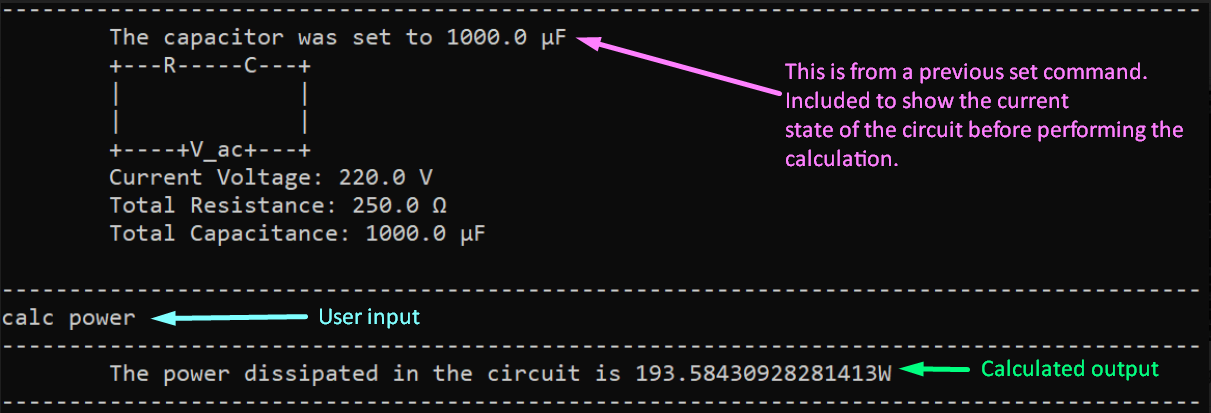

The image below is an example of when the calc power command is entered.

---

7. Boolean Action Commands

This section details how the commands are used with a boolean template. You can use this section to build simple logic circuits which may be made up of various gates such as AND, OR, and XOR gates.

7.1 Creating a boolean template

This command creates a boolean template. Similar to the circuit template, this command must be used to be able to use the set, add, calc commands since those commands must be done on an existing template.

Note: In all expected outcomes, ? denotes an input that is not yet set.

Command Format
template GATE

• The GATE can be chosen from the following:
  • and, or, xor, nand, nor, xnor

Example of usage:

template and

Expected outcome:

      OUT
       |
   B       C

OUT = B AND C
B = ?
C = ?

Here, OUT represents the output of the boolean template. The letters B and C can correspond to INPUT which is used in the following section. ? represents an INPUT which is not yet set.

7.2 Setting an input value

This command sets the value of an input. The inputs will then be used in the calc command to give the output of the boolean template. The input must not have already been set as a Gate and must be part of the diagram.

Warning: The INPUT must exist in the diagram, and must not have already been set as a Gate.

Command Format
set INPUT VALUE

• The INPUT can be chosen only from the current template.
• The VALUE can be any integer, but any valid non-zero integer will be treated as 1, while 0 is treated as 0. Valid integers are defined as the Java int type.

Example of usage:

set B 0

Expected Outcome:

      OUT
       |
   B       C

OUT = B AND C
B = 0
C = ?

7.3 Adding a Gate

The application has the ability to combine multiple Gate objects to generate more complicated boolean logic gate configurations. This command allows you to set an input to a boolean logic Gate. You can also change an existing gate if needed. However, the depth of the deepest logic Gate from the root logic Gate (at the top) cannot exceed 2.

Tip: You can use this command to change an existing Gate.

Warning: The Gate depth cannot exceed 2.

Note: The current implementation only allows the Gate objects to be 2 levels deep, counting from 0 at the top. This means you may see inputs up to the 3rd level, up to the letter O.

Command Format
add INPUT GATE

• The INPUT is as explained above in Set.
• The GATE is as explained above in Template.

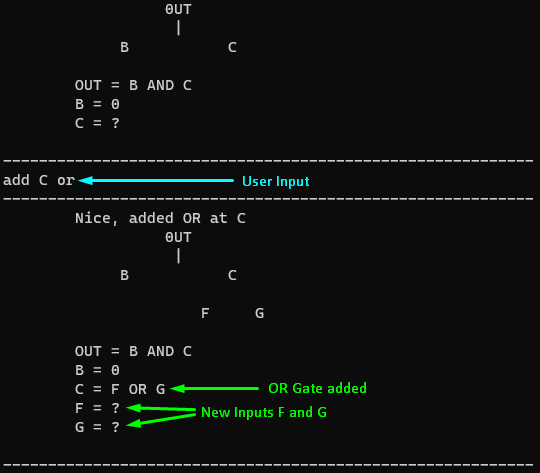

The image below shows an example of using the command set C or on the template shown.

7.4 Calculating Output

This command calculates the output of the configured logic gates, and requires that all inputs of the circuit are set. The output is represented by OUT in the printed template.

Warning: The output cannot be calculated if any input is not set yet.

Command Format
calc

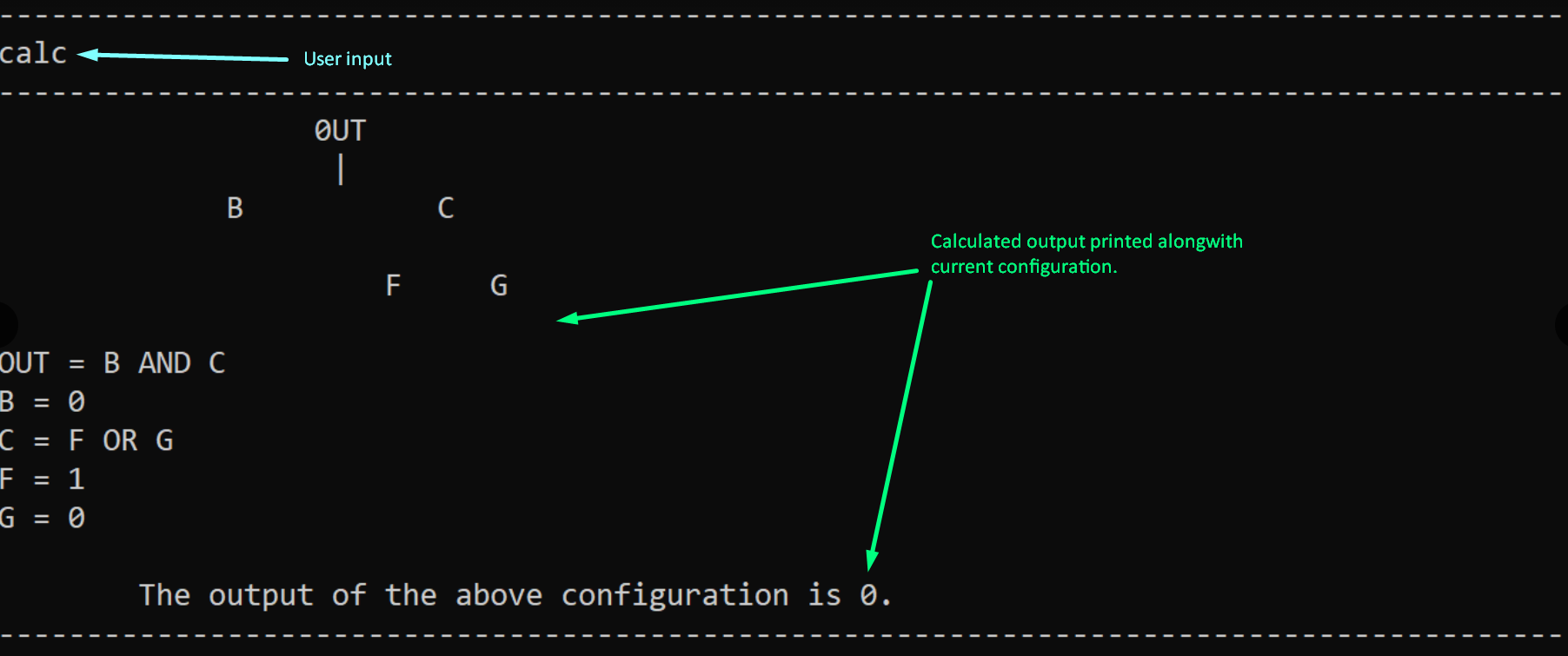

The following image shows an example of using the calc command.

---

8. FAQ

This section details the frequently asked questions (FAQ) regarding the use of the application.

Q: How do I know the difference between the components?

A: Pay attention in CG1111 Engineering Principles & Practice (EPP).

Q: How do I know what each logic gate does?

A: Pay attention in EE2026 Digital Design.

Q: Why is the interactive tutorial so restrictive?

A: This is by design. Once you get the hang of the application, you can exit the tutorial to use the commands proper.

Q: Why does using the add command for the circuit template give me a “Component not yet set” error?

A: You have to first set the component involved using the set command.

---

9. Command Summary

This section summarises the commands used in the application.

Action	Format, Examples
Tutorial	tutorial TYPE e.g., tutorial circuit
Summary	summary
Template Circuit/Logic Gate	template TEMPLATE/GATE e.g., template rc e.g., template and
Set Circuit/Logic Gate	set COMPONENT/INPUT VALUE e.g., set r 500 e.g., set B 0
Add Circuit	add CONFIG COMPONENT VALUE e.g., add parallel c 500
Add Logic Gate	add INPUT GATE e.g., add C or
Calculate Circuit/Logic Gate	calc EFF_VALUE/[] e.g., calc ceff e.g., calc

---

10. Glossary

This section explains certain technical terms used in the guide which may require more detail.

Term	Explanation
capacitors	A component which stores electrical energy in an electrical field
Command Line Interface (CLI)	Text-based user interface which the application uses to interact with the user
current	Flow of electric charge in a circuit
inductors	A component which stores energy in a magnetic field when electric current flows throw it
integer	A whole number
load components	A component which consumes electric power
logging	Keeping a record of information about events which take place, specific to the application
logic gate	Physical electronic device implementing a Boolean function
power	Rate at which electrical energy is transferred by a circuit
resistors	A component which provides electrical resistance
root	A point of reference for which other points can be traced back to
syntax	Rules in which a command must be run
voltage source	A device which can maintain a fixed voltage
